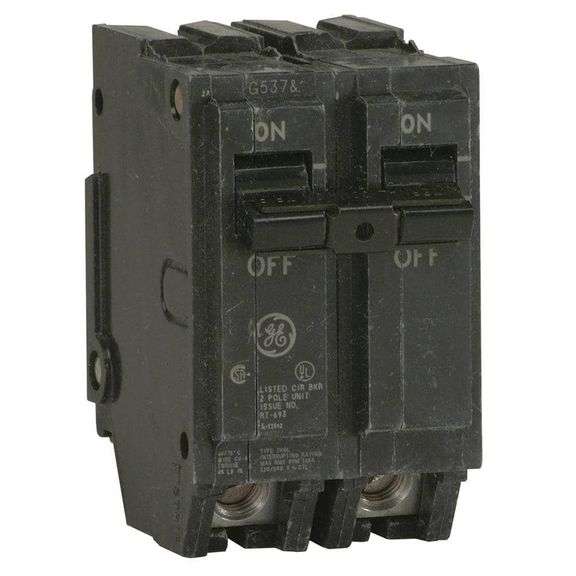

About This Product - GE Q-Line 30 Amp 2 in. Double-Pole Circuit Breaker

The GE Q-Line 30 Amp 2 in. Double-Pole Circuit Breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The unit has tin-plated copper stabs to create reliable, permanent and corrosion-resistant connections. The case is made of heat-resistant thermoset for stability and structural integrity.

Highlights

• Tin-plated copper stabs create reliable, permanent and corrosion-resistant connections
• Box type terminals
• Calibration screw is cemented to prevent shifting
• Case is made of heat-resistant thermoset for stability and structural integrity
• Trips to the center position
• Meets NEMA standards
• ANSI certified and CSA and UL listed
• Learn More About Circuit Breakers Here in our Buying Guide.
•
• Click here for more information on Electronic Recycling Programs

Specifications

AIC Rating: 10000

Breaker Type: Standard

Connection Type: Non-Neutral

Interruption Type: Standard Trip

Maximum Amperage (A): 30 A

Mounting Type: Plug-On

Number of Poles: Double

Pack Size: 1

Product Weight (lb.): .65 lb

Returnable: 90-Day

Series Type: Not Specified

Trip Unit: Thermal Magnetic

Voltage (V): 240 V

Certifications and Listings: UL Listed

Manufacturer Warranty: One year warranty from first use

Product Depth (in.): 3 in

Product Height (in.): 3 in

Product Width (in.): 3.375 in

Product Information

Internet # 100356511

Model # THQL2130
